Description

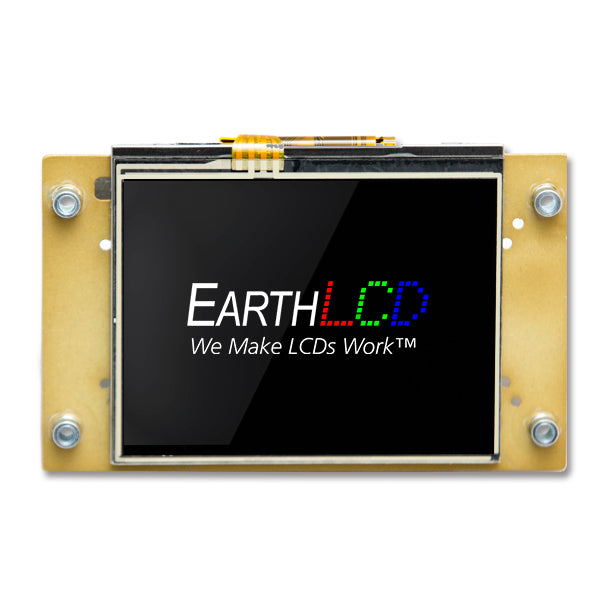

The EarthLCD ezLCD-303 is a third generation, intelligent, all-on-one, smart LCD. Highly functional, flexible, cost-effective alternative to buttons, switches, character modules, STN displays, or more complex graphic touch displays. Easy-to-program via USB development cable (sold separately) and your own PC! Simple ASCII command-driven operation using our free serial terminal program (included). EarthSempl by EarthLCD is intuitive and includes a multitude of fonts, images, and sample macros included to get you going fast! Widgets include: analog meter, buttons, checkbox, dial, radio button, slider, and others! Works with any micro-controller, including Arduino!
- 3.5" color TFT LCD
- 320 x 240 resolution
- 65,536 colors (16-bit)
- 350 Nit Brightness - IPS Screen - LED backlight
- 500:1 Contrast Ratio
- Integrated 4-wire resistive touchscreen
- Powerful 16-bit Graphics Processing Unit (GPU)
- 4 MB flash memory for storing fonts, bitmaps, & macros
- USB 2.0 and serial TTL interfaces
- Overall Outline Dimensions: 4.08 x 2.52 x .86
- 3.3V operating voltage
- Extremely low power: 130mA typical
- -20C to +60C operating temperature
- RoHS compliant
- EarthSEMPL Programming Language
- Windows 7, XP, Linux, and OSX compatible
- Use as a graphic client or as a stand alone controller
- Optional USB development cable, eng. development kit
