Description

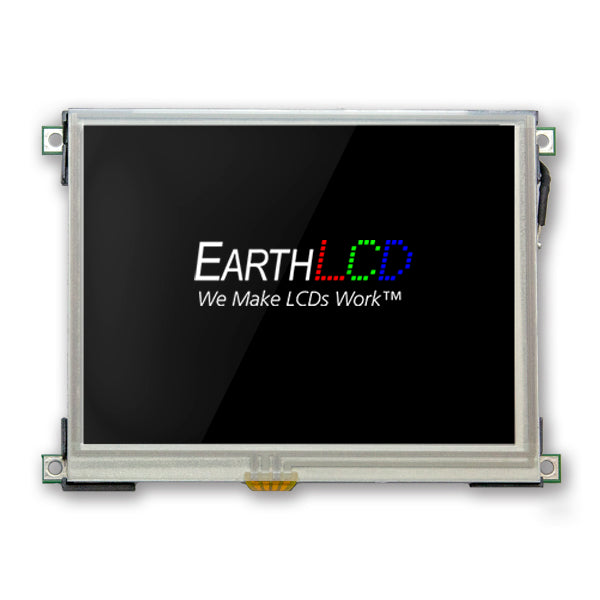

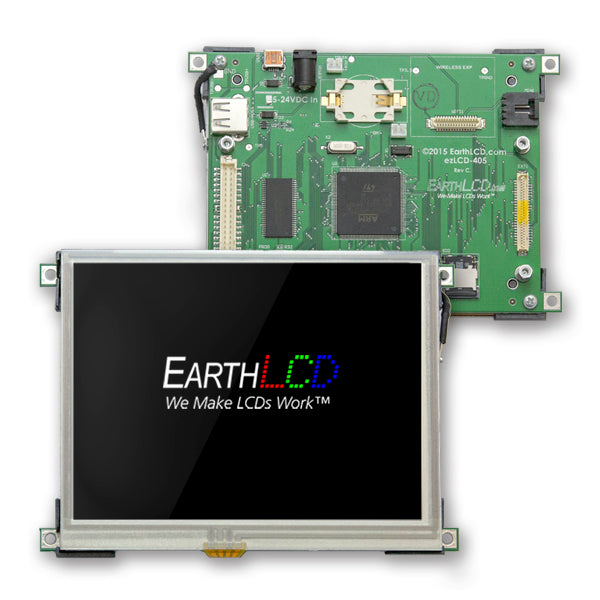

AMAZING, fourth generation, intelligent, all-in-one, touchscreen "ezLCD" technology by. It features 4 times the performance of the last generation. The EarthLCD ezLCD-405 uses the proven ezLCD API for rapid development of dynamic user interfaces. ezLCD's have been the serial Smart Touch LCD of choice for the last fifteen years for Top Tier Medical, Instrumentation and Industrial equipment manufacturers looking to outsource the GUI portion of their product. Benefits of the ezLCD-405 include a 640 x 480 Color TFT LCD with a resistive touch screen. It contains a STMicro STM32F429 ARM Cortex M4 microcontroller running at 180 Mhz, 8 megabytes of DRAM, 2 Megabytes of code Flash and up to 32 GB of SD Flash storage. Connect to any microcontroller via serial port in seconds.
Lifecycle Statement: This ezLCD has been available since 2008 former variations were the ezLCD-004 and the ezLCD-005. Since August 2023 the ezLCD-405 must use one of the firmware and config utility at this link. PLEASE USE the corresponding Rev H or rev J firmware as indicated on your ezLCD. We intent to build this model exactly for two more years then replace it with a mechanically compatible version compatible with the ezLCD-5xx family. The current version is revision J.
