ezLCD-3043-PK 4.3" TFT Touchscreen Pi Pico Driven Smart LCD (Kit)!

Sale price$149.00


The first Pi Pico (RP2040) based smart LCD! The ezLCD-3043-PK-Pi Pico ezLCD. For more information search github for ezLCD-3043-PK .  The ezLCDduino arduino library marries the Pi Pico and the Arduino IDE to this intelligent, all-in-one, touchscreen "ezLCD" technology. Highly functional, flexible, cost-effective alternative to buttons, switches, character modules, STN displays or more complex graphic touch displays. Easy to program via USB development cable (sold separately) and your own PC!  Library commands are intuitive and include a multitude of fonts, images, and sample sketches to get you going fast! Widgets with complete Arduino C++ examples include: analog meter, buttons, checkbox, dial, radio button, slider, and others!

ezLCD Features

  • 480 x 272  resolution
  • 65,536 colors (16-bit)
  • 350 Nit Brightness  - LED backlight
  • 500:1 Contrast Ratio
  • Integrated 4-wire resistive touchscreen
  • Powerful 16-bit Graphics Processing Unit (GPU)
  • 4 MB flash memory for storing fonts, bitmaps, & macros
  • USB 2.0 and serial TTL interfaces
  • Overall Outline Dimensions: 4.08 x 2.52 x 1.3 in
  • -20C to +60C operating temperature
  • RoHS compliant

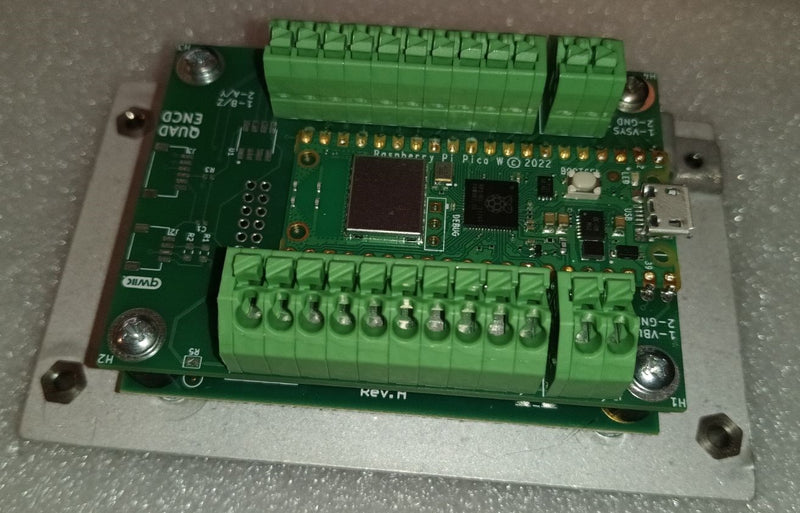

EarthPK-3x Pi Pico Breakout board (unassembled bare board only) Features

  • Pi Pico (footprint)
  • Qwicc  / Stemma Connector for i2c (footprint)
  • EarthSpin Connector (for Rotary Encoder (footprint)
  • RS-485 Driver (footprint)
  • Industrial Terminal block (footprint)
  • DF11 for ezLCD connections

NOTE: THIS IS A KIT  - While the ezLCD is assembled the EarthPK-3x is not and the only parts included is the DF11 connector and the bare PCB. This requires good soldering skills! (based on demand an assembled EarthPK-3x may be available later). The product manual, software, and other documentation, please visit the ezLCD-3043-PK GitHub page. For the complete PCB design for the Pi Pico breakout board please visit the EarthPK-3x board GitHub Page.
